This section outlines the setup of a virtual lab environment using GNS3 to simulate a network suitable for SNMP monitoring and security testing. The topology includes routers, switches, virtual machines, and PCs to emulate real-world monitoring scenarios.

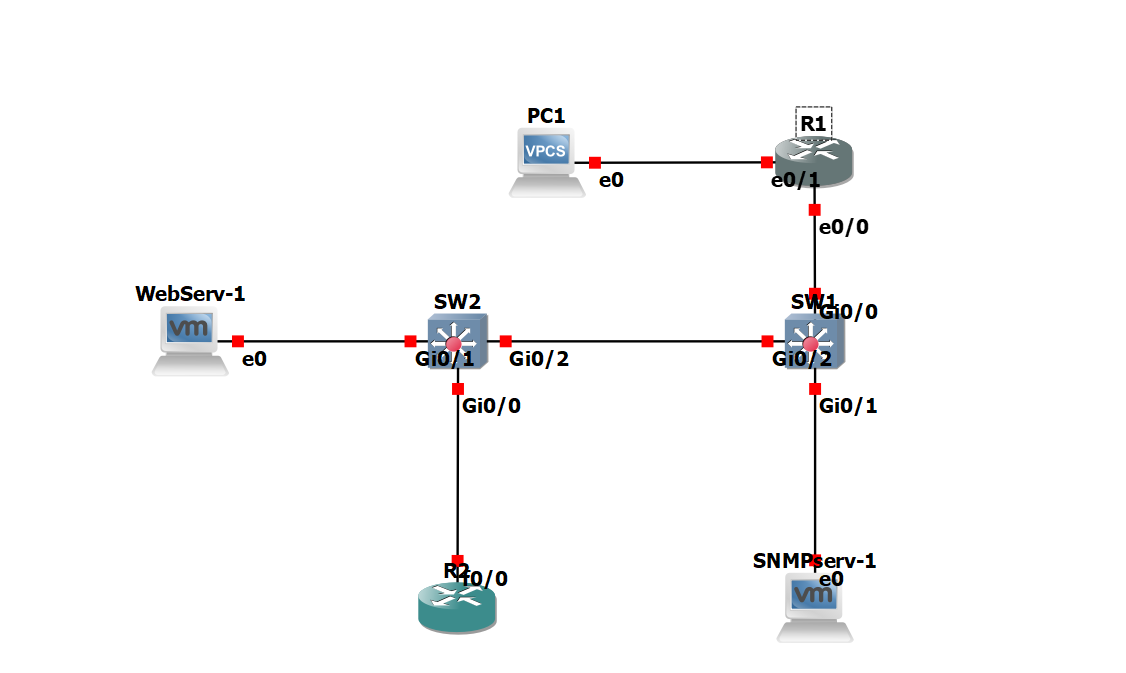

The lab topology consists of the following components:
| Device | Interface | IP Address |
|---|---|---|
| R1 | e0/0 | 10.0.0.253/24 |
| R1 | e0/1 | 10.0.1.254/24 |
| R2 | f0/0 | 10.0.0.254/24 |
| SW1 | VLAN 1 | 10.0.0.100/24 |
| SW2 | VLAN 1 | 10.0.0.200/24 |
| SNMP-Serv | eth0 | 10.0.0.1/24 |
| WebServ | eth0 | 10.0.0.4/24 |
| PC1 | eth0 | 10.0.1.1/24 |

The layout supports both basic SNMP interactions and security experiments including traffic interception and brute force attacks.
To replicate this lab, the following tools and software are required:
